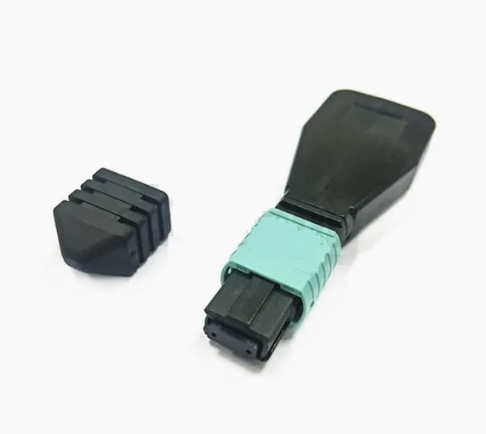

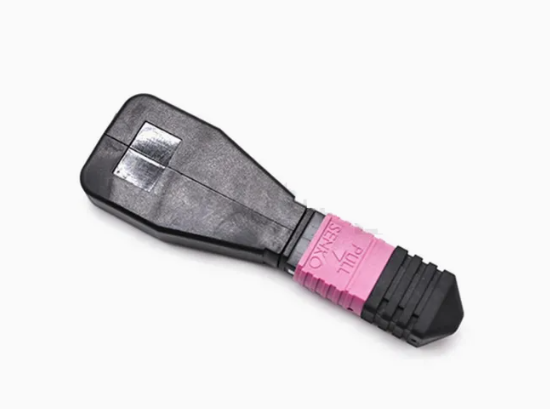

MPO/UPC OM5 50/125 μ m multimode 12 core loop line

MPO/UPC OM5 50/125 μ m multimode 12 core loop line is the core tool for data center and high-speed network testing. With its precise design and advanced performance, it has become a powerful tool for efficient operation and maintenance of optical fiber systems:

1. Excellent compatibility and stability
   OM5 fiber is fully backward compatible with OM3/OM4 systems, and the MPO interface complies with the IEC 61754-7 standard, ensuring seamless integration with mainstream equipment. Excellent bending resistance, with a plug-in life of over 500 times, meeting the frequent testing needs of the computer room.
2. Simplify operations and reduce costs
   Pre terminated factory design, no need for on-site fiber melting, plug and play. The integrated loop structure avoids manual manufacturing errors, provides stable and reliable testing benchmarks, and significantly reduces manual maintenance costs and downtime losses.
   Summary: MPO/UPC OM5 12 core loopback line, with high-density integration, 400G ready bandwidth, and precise loopback diagnostic capability, has become the “intelligent stethoscope” for data center operations and maintenance, and is a key tool for ensuring network health and achieving efficient fault elimination.
3. Ultra high density integration, efficient deployment

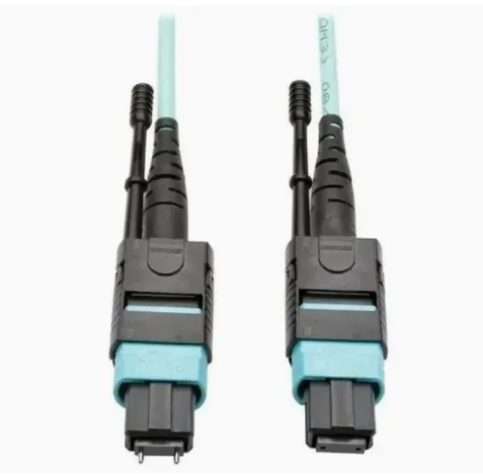

   Adopting MPO-12 multi-core connector (MTP) ® For the upgraded version, the single interface integrates 12 core fiber channel, which increases space utilization several times. In conjunction with the OM5 fiber optic 50/125 μ m standard, high-density cabling within the cabinet is achieved, significantly saving valuable space in the data center and simplifying cable management.
4. Support ultra-high speed and future upgrades
   OM5 broadband multimode fiber (WBMMF) is optimized for short wave division multiplexing (SWDM) technology, capable of parallel transmission of 4 wavelengths in the 850-953nm band. A single fiber can carry high-speed transmission from 40G/100G to 400G, perfectly adapting to the needs of next-generation data centers. The UPC ultra precision polishing head ensures extremely low insertion loss (<0.3dB) and high return loss (>55dB), ensuring signal integrity.
5. Core function: Fast and accurate loop back testing
   As a dedicated loopback cable, its core value lies in network diagnosis:
   -Insert the switch optical port or tester port to instantly complete the port self-test
   -Verify whether the transceiver function of the optical module (such as QSFP28/QSFP-DD) is normal
   -Quickly locate fault points such as link interruptions and high bit error rates, greatly reducing operation and maintenance time

For further guidance or to explore our range of high-quality fiber optic solutions. Visit TOEM and MIC TOEM, optical communications is our specialty.
