Photographic fiber preform, special fiber preform technical definition

Photosensitive fiber preform : germanium/rare earth element doped quartz substrate, permanently refractive index modulated by ultraviolet irradiation, used for engraving fiber Bragg gratings (FBGs) .

Special fiber preform: By doping materials (fluorine/boron/photonic crystals) and structural design, it achieves special functions such as energy transmission, radiation resistance, and microstructure.

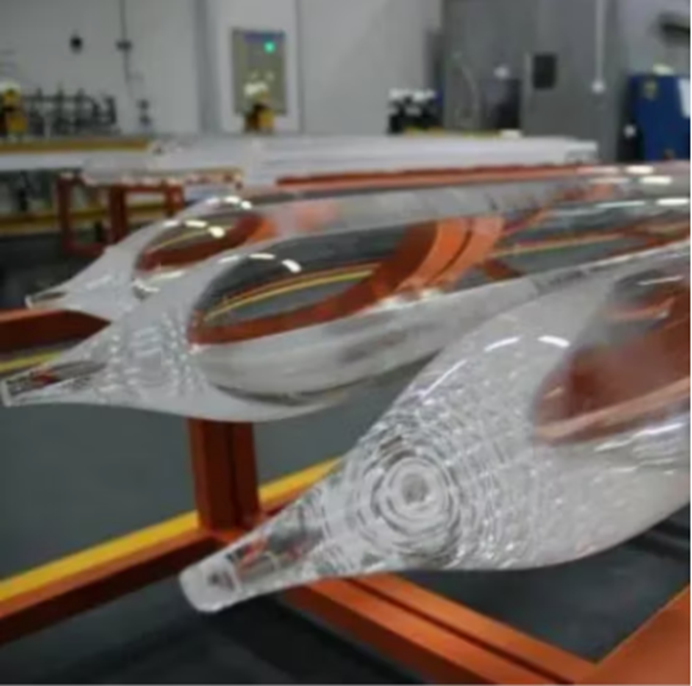

Endoscope fiber preform rod

Four disruptive advantages

Photon customization degree of freedom

The photosensitive preform supports a sensitivity of >40dB and can engrave complex FBG arrays (wavelength accuracy ± 0.05nm), with customized filters/sensors.

Special prefabricated rods  achieve a micro porous structure of 0.1-1000 μ m, constructing  photonic crystal fibers  (PCF) or  hollow core fibers .

Extreme environmental adaptability

Radiation resistant prefabricated rod  (cerium doped quartz) has a loss of less than 1dB/km under 10 ⁶ Gy gamma rays (ordinary optical fiber failure).

High temperature energy transfer prefabricated rod  (pure silicon core+fluorine cladding) can withstand a molten metal environment of 1200 ° C.

Ultra low loss transmission

The ultra pure synthetic quartz process results in a hydroxyl content of less than 1 ppb and an infrared band loss of ≤ 0.15 dB/km (@ 1550nm).

Multi physics field integration capability

Microchannel integrated preform: synchronously transmitting optical signals and fluids, used for on-chip biochemical sensing.

Magnetic doping  preform : achieving magnetic optical field coupling in optical fibers (core of magneto-optical isolators).

Revolutionary application scenarios

Endoscope fiber preform rod

Breakthrough in core application performance of material types

Photographic preform 5G base station temperature compensation FBG temperature drift<0.5pm/℃ (stable across all frequency bands)

Radiation resistant prefabricated rods  Nuclear power plant reactor monitoring fiber optic lifespan>20 years (cumulative dose 100MGy)

Photon crystal preform  supercontinuum laser spectrum broadening>2000nm @ 1560nm

Multi material prefabricated rod medical laser surgical knife energy transmission fiber optic transmission 6 μ m mid infrared laser (energy>95%)

Selection Technical Guidelines

Photogenic preform: preferred high germanium doping scheme (photosensitivity>30dB) vs hydrogen loading scheme (poor stability)

Endoscope fiber preform rod

Special prefabricated rod :

Energy transmission scenario: Select pure silicon core+hard polymer coating (NA ≥ 0.22)

Sensing scenario: Select microstructure polarization maintaining prefabricated rod (birefringence>3 × 10 ⁻⁴)

Summary: Two types of prefabricated rods break through the traditional limits of optical fibers with “atomic level material control+three-dimensional structural freedom”, providing underlying optical engines for cutting-edge fields such as quantum communication, fusion devices, and neuroscience. Directly determining the performance ceiling and cost boundary of fiber optic devices.
