Low-loss QBH patch cord: A precise optical path solution for industrial laser systems

Low-Loss QBH Patch Cables as Precision Transmission Media for Industrial Laser Systems

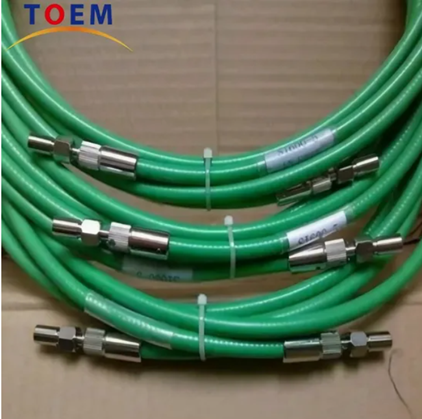

Low-Loss QBH Patch Cables are precision transmission media specifically designed for industrial laser systems. They establish an efficient, stable, low-loss optical link between the fiber laser output and the processing head. By optimizing fiber parameters and connector alignment, these precision cables maintain typical insertion loss below 0.3dB. This performance makes them particularly suitable for demanding applications like micro-processing and precision welding, where extremely high beam quality is essential.

Three Core Advantages for Superior Performance

Technically, the core advantages of low-loss QBH cables manifest in three key aspects. First, their customized graded-index (GI) energy delivery fibers effectively suppress mode distortion, keeping the variation in laser Beam Parameter Product (BPP) below 10%. Second, the connectors utilize nanoscale centering technology with ceramic ferrules, which controls eccentricity error within 0.5μm for exceptional alignment precision. Third, a fully sealed structural design achieves an IP67 protection rating, enabling reliable operation in harsh industrial environments with oil, dust, and other contaminants.

Enhanced Processing Consistency and Validated Performance Data

In precision fields such as laser cutting, marking, and microelectronic welding, these low-loss components significantly improve processing consistency. Test data confirms that within a 10W-500W power range, they achieve a power stability standard deviation of less than 1.5% and a temperature drift coefficient below 0.02dB/°C. Compared to standard QBH patch cables, the low-loss version improves beam quality preservation and long-term stability by approximately 40%, making it the preferred choice for high-end laser equipment manufacturers.

Smart Integration and Expanding Frontier Applications

As demands for precision rise in manufacturing, next-generation low-loss QBH cables are beginning to integrate online power monitoring and beam diagnostic functions. Through built-in micro photodetectors that interface with smart manufacturing systems, they enable real-time laser parameter optimization and adjustment. In cutting-edge fields like laser packaging for 5G communication devices and precision scribing of photovoltaic cells, these advanced patch cables are helping to push laser processing technology toward sub-micron precision.
