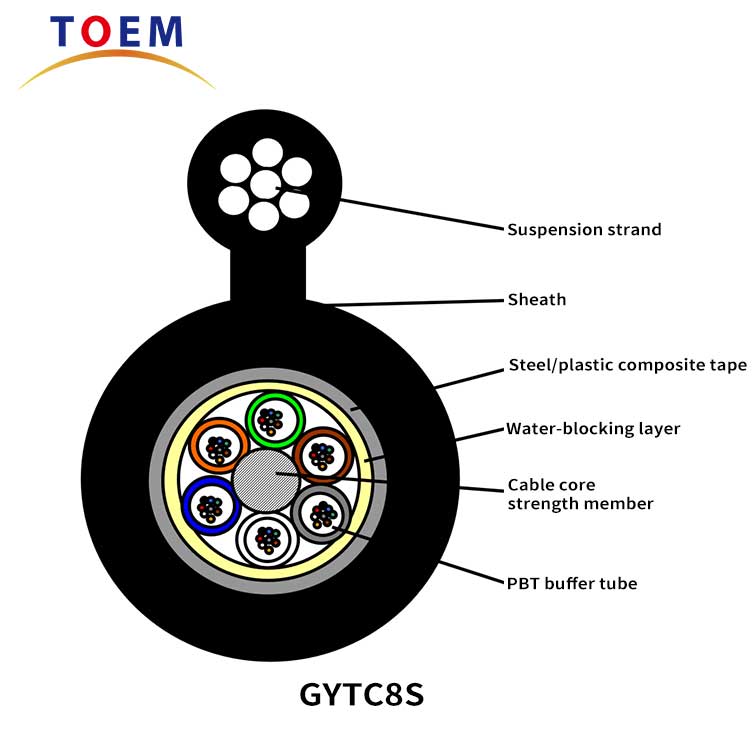

The structure of high tensile GYTC8S figure 8 aerial fiber optic cable is to insert 250 µ m optical fiber into a loose tube made of high modulus material, and fill the loose tube with waterproof compound. The center of the cable core is a metal reinforced core, and a loose sleeve (and filling rope) is twisted around the center reinforced core to form a compact and circular cable core. The cable core is longitudinally wrapped with a layer of coated steel strip (PSP) and integrated with steel wire strands into an 8-shaped polyethylene sheath to form the cable.

Standard

YD/T 1155 , IEC 60794-1;

Feature

1.Steel wire strands have extremely high tensile strength, making them easy for self-supporting overhead laying and reducing installation costs;
2.Aerial fiber optic cables have excellent mechanical properties and temperature characteristics;
3.The loose tube material itself has good hydrolysis resistance and high strength;
4.The tube is filled with special ointment to provide critical protection for the optical fiber;
5.Take the following measures to ensure the waterproof performance of the optical cable:
-Single steel wire center reinforcement core;
-Filling special waterproof compounds inside the loose tube;
-Complete cable core filling;
-Plastic coated steel strip (PSP) improves the moisture resistance of optical cables;

Characters

Storage,Working Temperature: -40ºC~+70ºC
