40/100G OM3 12 Cores Connector Single Mode Fiber Patch Cord 50/125 Multimode MPO Fan-Out Jumper Female to Female Type B
TOEM MTP/MPO single mode fiber patch cord is made of Low Smoke Zero Halogen (LSZH) material, with a minimum bending radius of 5.5mm – suitable for high-rated 50/125μm optical fibers and coatings, insensitive to bending, easy to strip, and weld, ensuring minimal optical loss and stable transmission.
Multimode Fan-Out MTP-LC Jumper can operate within a temperature range of -20ºC to +122ºC. Due to their flexible PVC coating, they are more suitable for indoor use. For outdoor and longer lengths, armored cables are recommended for better strength.
TOEM single mode fiber patch cord is made of Low Smoke Zero Halogen (LSZH) material, with a minimum bending radius of 5.5mm – suitable for high-rated 50/125μm optical fibers and coatings, insensitive to bending, easy to strip, and weld, ensuring minimal optical loss and stable transmission.
Ceramic ferrule is a specialized ceramic component made of nano-zirconia material, processed with high precision grinding for high hardness and brittleness. It ensures signal integrity with high return loss ≥50dB and low insertion loss ≤0.3dB, providing precise alignment and minimal attenuation.
Single mode Jumper utilizes optimized VCSEL light sources, supporting higher-density connections, making it the preferred choice in high-speed data transmission environments. With a broadband of 4700MHz.km, OM1 to OM4 Single-mode MTP MPO fiber achieves 10Gbps within 500 meters. It offers faster and more precise transmission compared to OM3.
Single-mode MPO Fan-Out Jumper can operate within a temperature range of -20ºC to +122ºC. Due to their flexible PVC coating, they are more suitable for indoor use. For outdoor and longer lengths, armored cables are recommended for better strength.

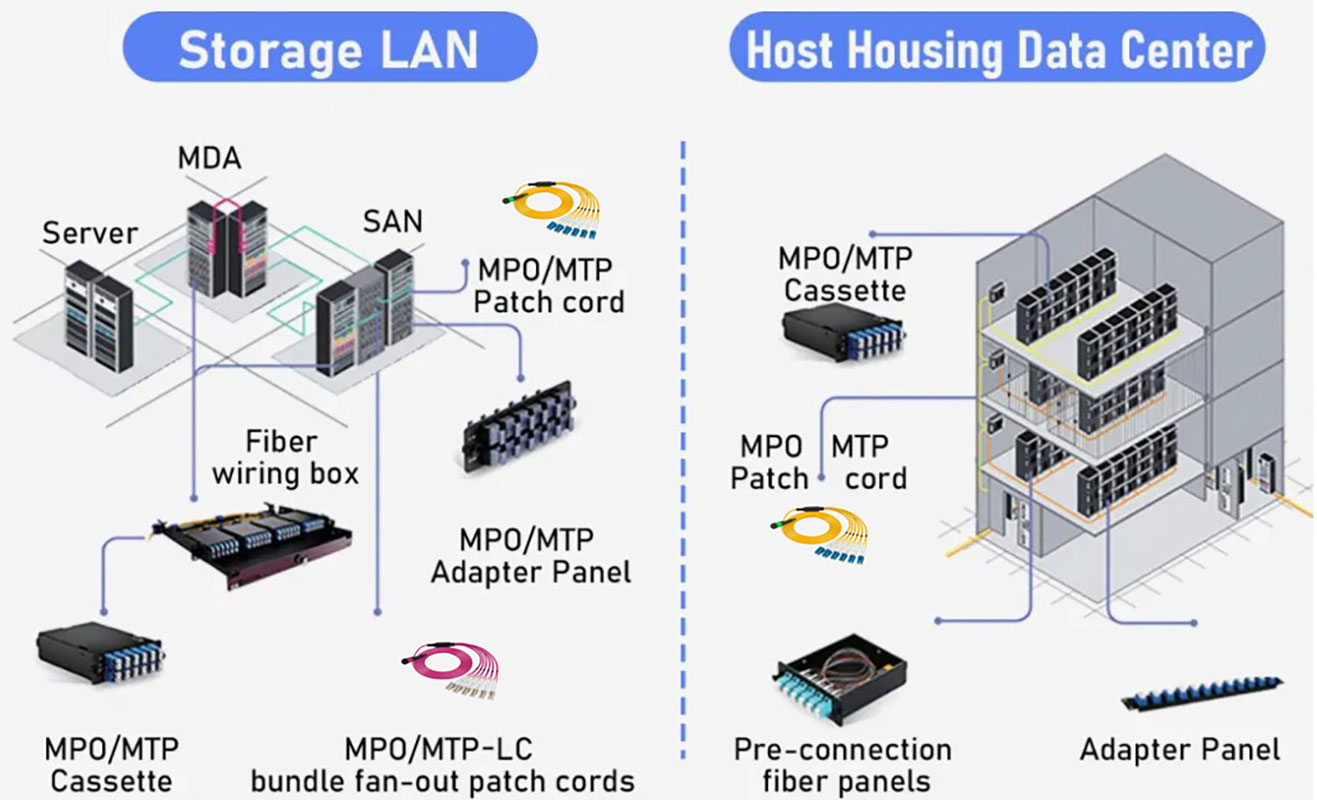

TOME MTP/MPO Single Mode Fiber Patch Cord is Suitable for high-performance applications. Such as large-scale data centers, cloud computing, etc. This includes fiber optic communication systems, fiber-to-the-home deployments, optical data transmission, CATV networks, LAN setups, optical testing equipment, and fiber optic sensors. Maximum transmission distances: 1Gb Ethernet – 1040m/3411 inches, 10Gb Ethernet – 550m/1804 inches, 100Gb Ethernet – 150m/492 inches.
Application
*Network Switch Manufacturers supporting 40/100G;
*Server Manufacturers supporting 40/100G;
*Single-mode MPO Fan-Out Jumper is suitable for data Centers with 100G requirements with Aggregation Architectures;
*single mode fiber patch cord suitable for RS485/RS422/RS232 Equipment Accessories;
Specification
| Items | Description | |
| Connector | MPO(MTP) | LC |
| Connector Type | Female / Male | UPC / APC |
| Connector color | OS2: Green OM4/OM3: Aqua | OS2: UPC-Blue ,APC-Green OM4/OM3: Aqua |
| Fiber Count | 4~72 Fibers | |
| Fiber Mode | Single mode: OS2 9/125µm Multimode: OM4 50/125µm, OM3 50/125µm | |
| Fiber Brand | Corning ClearCurve ® multimode fiber and SMF-28® Ultra optical fiber | |
MPO Fanout Ordering Information
| Fiber Counts | Connector A | Connector B | Loss level | Cable | Fiber Type | Cable Jacket |
| 8 12 24 |
SM/UPC 12C Female SM/UPC 12C Male SM/APC 12C Female SM/APC 12C Male SM/UPC 24C Female SM/UPC 24C Male SM/APC 24C Female SM/APC 24C Male MM/UPC 12C Female MM/UPC 12C Male MM/UPC 24C Female MM/UPC 24C Male |
LC/UPC SM LC/APC SM LC/UPC MM SC/UPC SM SC/APC SM SC/UPC MM FC/UPC SM FC/APC SM FC/UPC MM ST/UPC SM ST/UPC MM |
Standard Loss <0.7dB Low Loss <0.35dB |
Mini bundle cable Ribbon cable |
SM-9/125-G652D SM-9/125-G657A1 SM-9/125-G657A2 MM-62.5/125-OM1 MM-50/125-OM2 MM-50/125-OM3-150 MM-50/125-OM3-550 |
OFNP OFNR |
Product Dimensions : 3.94 x 3.94 x 0.08 inches;
