High Speed Auto Welding Easy to Handle FTTH Fiber Optic Fusion Splicer

Categories ,
Inquiry
Fusion Splicer, Optical Fiber Splicer, Fiber Splicer
Fusion Splicer, Optical Fiber Splicer, Fiber Splicer
Fusion Splicer, Optical Fiber Splicer, Fiber Splicer
Fusion Splicer, Optical Fiber Splicer, Fiber Splicer

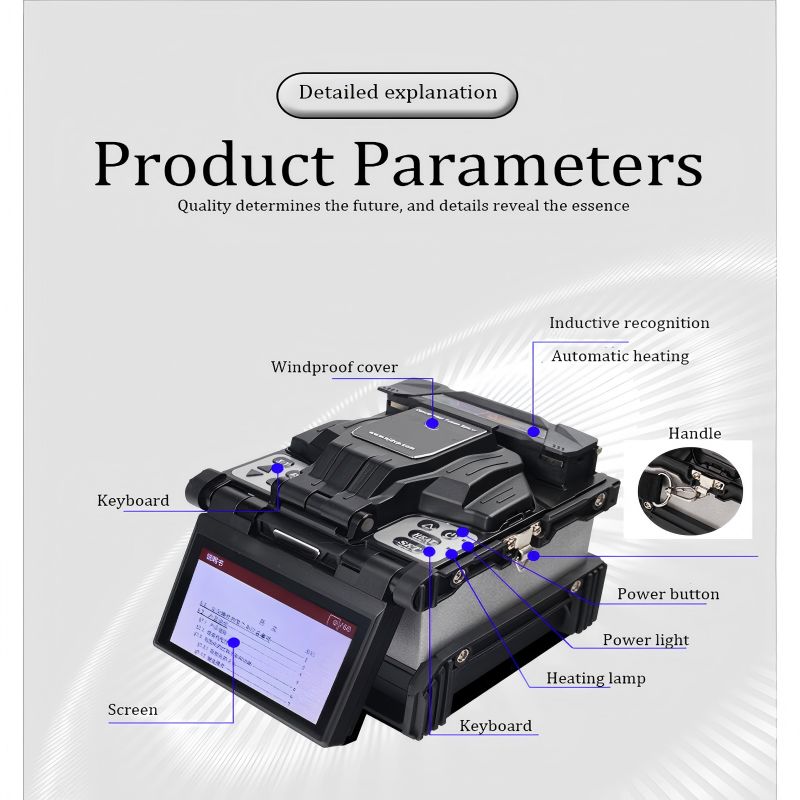

Specification:

Applicable core number Single core

Applicable to optical fibers SMF(G.652),MMF(G.651),DSF(G.653),NZDSF(G.655)BIF(G.657)
Actual average loss 0.02dB(SMF)0.01dB(MMF)0.04dB(DSF)0.04dB(NZDSF)0.02dB(BIF)
Return loss ≥60dB
Tension test 2.ON(200gf) (Standard)
Core material Quartz optical fiber
Outer diameter of optical fiber Cladding diameter:80~150um/Coating diameter:100um~3mm
Cutting length 8~16mm
Lighting High-brightness LED white light
Welding time Focus mode (11 seconds) Non-focus mode (8 seconds)
Heating time 20 seconds
Optical fiber display and magnification Display :X, Y; X/Y. Magnify 300 times
Fiber alignment method Core alignment (6 motors)
Automatic identification of optical fibers Support
Automatic discharge calibration Support
Electrode life Discharge 6,000 times
Specifications of heat shrink tubing Optical fiber heat shrink tubes of 20-60mm and other special specifications
Fusion welding program 17 sets of factory-preset programs and 63 sets of user-defined programs
Heating procedure 6 sets of factory-preset programs, 14 sets of user-defined programs, supporting automatic heating mode
Automatic heating Support
Data storage It can store 20,000 welding logs, 20,000 welding images and 20,000 heating logs, and export the data to a USB flash drive with one click
Language display Chinese, English, Korean, Russian, Spanish, Portuguese, German, French and many other languages
Operating environment Temperature :-25 to +50° C Humidity :0-95%RH(No condensation) Altitude :0-5000 meters; Wind speed: Maximum 15 meters per second
Storage environment Temperature :-40 to +80° C Humidity :0-95%RH(No condensation)
Power supply Ac adapter: AC input voltage 85-260V, 50/60Hz. Battery: Voltage 12V, capacity 6.5Ah
Battery usage times 260 times of welding/heating
Monitor 4.3-inch color high-resolution LCD screen
Size/Weight 152(D)x142(W)x137(H)mm1.9kg/1.5kg(battery not included)
Software upgrade Supports quick upgrade via USB flash drive
