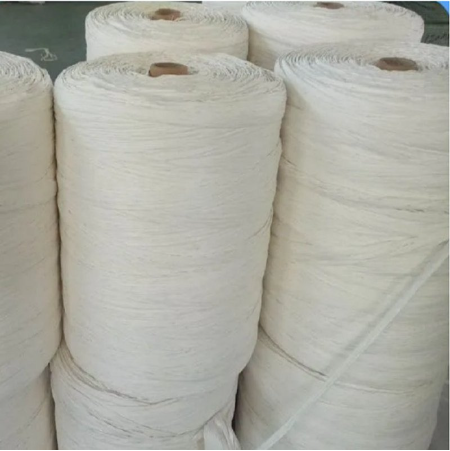

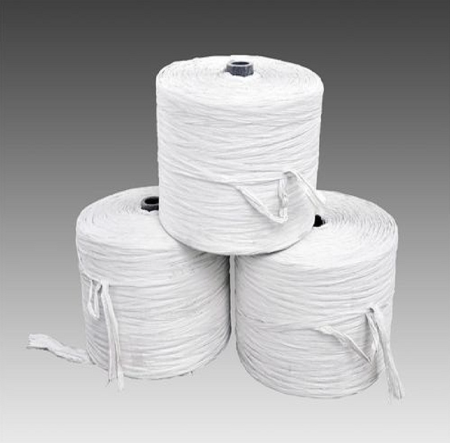

Environmental PP Waterproof filler Filler Yarn Flame Retardant Waterproof Non Organic Filler String
PP waterproof filler string used for flame-retardant, fire-resistant LSOH/LSZH flame-retardant, fire (oxygen)separated, LSLH flame-retardant cable.
Specification
| Type and specification | Performance | |||||||
| type | (±5%) diameter (mm) |
weight (g/m) |
number of section ( ) |
lay scope (twist/m) |
rupture strength not less than (N) |
oxygen index (%) |
cauterant weight loss rate not more than (%) |
moisture rate (%) |
| T-TCSWZ-2 | 2 | ≤3.5 | 1 | 20-30 | 10 | ≥80 | 36 | ≤3.5 |
| T-TCSWZ-3 | 3 | ≤7.5 | 3 | 20 | ||||
| T-TCSWZ-4 | 4 | ≤14 | 5 | 45 | ||||
| T-TCSWZ-5 | 5 | ≤25 | 6 | 10-20 | 65 | |||
| T-TCSWZ-6 | 6 | ≤33 | 7 | 90 | ||||
| T-TCSWZ-8 | 8 | ≤55 | 9 | 100 | ||||
| T-TCSWZ-10 | 10 | ≤85 | 16 | 130 | ||||
| T-TCSWZ-12 | 12 | ≤100 | 20 | 5-10 | 140 | |||
| T-TCSWZ-14 | 14 | ≤120 | 25 | 150 | ||||
| T-TCSWZ-15 | 15 | ≤135 | 30 | 160 | ||||
| T-TCSWZ-16 | 16 | ≤180 | 33 | 170 | ||||
| T-TCSWZ-18 | 18 | ≤230 | 48 | 180 | ||||
| T-TCSWZ-20 | 20 | ≤250 | 54 | 210 | ||||
| T-TCSWZ-22 | 22 | ≤270 | 62 | 230 | ||||
Note: Special specification and lay shall be indicated in the order.
Application
It ensures that the cable is of good roundness.
It can improve flame-retardant class of the cable when use filler with high oxygen index.
It can fix the cable core in a stable position.
It can increase cable’s tensile strength.
Product Features
Its operation temperature is the same with that of the cable.
It does not pollute the environment and do harm to human body in process of wrapping.
It have good tensile strength and certain elongation.
Storage:
It should be stored in the dry and clean warehouse and the shelf life is 18 months after the manufacturing date
