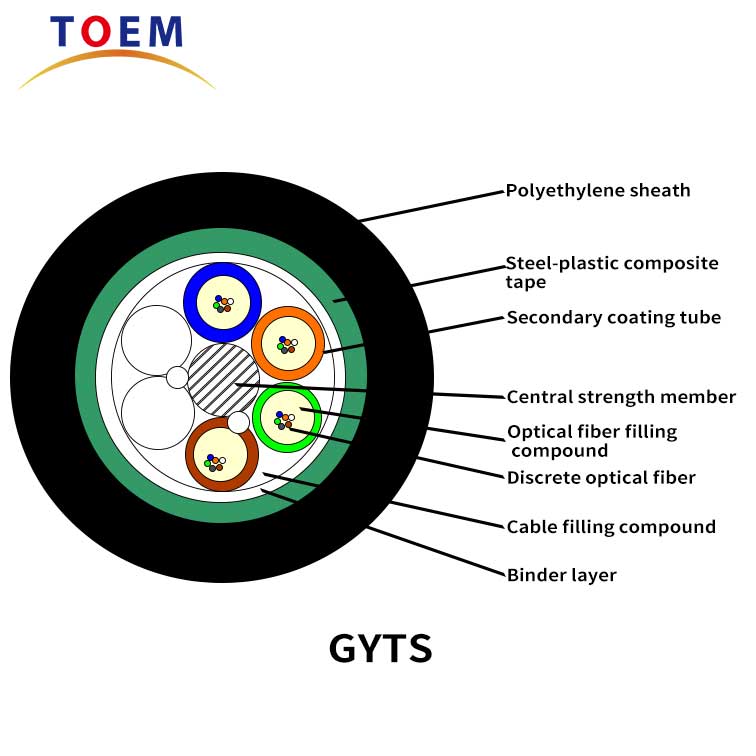

The structure of GYTS waterproof durable armored fiber cable is to insert 250 µ m optical fiber into a loose tube made of high modulus material, and fill the loose tube with waterproof compound. The center of the cable core is a metal reinforced core, and for certain numbers of optical cables, a layer of polyethylene (PE) needs to be extruded outside the metal reinforced core. The loose sleeve and filling rope are twisted around the center to strengthen the core and form a compact and circular cable core. The gaps inside the cable core are filled with water blocking fillers. Double sided coated steel strip (PSP) is longitudinally wrapped and extruded into a PE sheath to form a cable.

Standard

YD/T 1114;

Feature

1.Has excellent mechanical properties and temperature characteristics;
2.The loose tube material itself has good hydrolysis resistance and high strength;
3.The tube is filled with special ointment to provide critical protection for the optical fiber;
4.Specially designed compact fiber optic cable structure effectively prevents sleeve retraction;
5.Armored fiber cable has good compression resistance and flexibility;
6.Special sheaths have excellent performance;
7.Take the following measures to ensure the waterproof performance of the optical cable:
-Single steel wire center reinforcement core;
-Filling special waterproof compounds inside the loose tube;
-Complete cable core filling;
-Double sided coated steel strip (PSP) improves the moisture resistance of optical cables;

Characters of Armored Fiber Cable

Storage,Working Temperature: -40ºC~+70ºC

Packaging: Standard disc tools;
Applicable to: pipelines, overhead;
