T-CC009 Flame Retardant LSZH Crolinking Sheath Shielded Twisted Pair Cable Cat5e Ethernet Cable

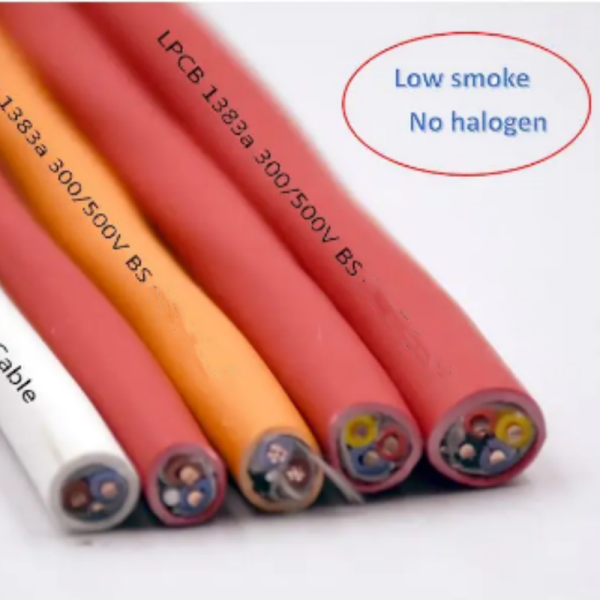

Crosslinking low smoke halogen cable has very excellent flame retardant performance, but also has strong overload capacity, load capacity and the advantages of large insulation resistance, suitable for high buildings, hotels, shopping malls, stadiums, transportation hub, entertainment places need high flame retardant halogen, low smoke, non-toxic, no corrosive gas crowded area. Especially suitable for rail transit on-board PIS system, the relevant national standards have clearly required the on-board PIS system to give priority to the use of cross-linked sheath cables. Cross-link low smoke halogen free flame retardant sheath shield multi-stranded cable fully meet the relevant national standards.
Cat5e cable usually consists of 4 pairs of twisted wires, each wire is usually 24 AWG (American Wire Gauge). That is, the diameter is about 0.511 mm. These pairs are twisted with a specific lay length to reduce electromagnetic interference and crosstalk. In addition, each conductor is usually insulated with PVC (polyvinyl chloride) or PE (polyethylene). Cat5e ethernet cable has a higher signal-to-noise ratio (SNR), which helps improve the quality of data transmission. Cat5e cable has a smaller delay error, ensuring the accuracy and real-time nature of data transmission. The standards of Cat5e cables mainly follow international standards such as TIA/EIA-568-B and ISO/IEC 11801.
Features |
| 1. Super 5 class 22 wire gauge 4, cross isolation and copper mesh weaving and aluminum foil double total shielding, copper net weaving density is more than 80%;
2. Super 5 class 22 wire gauge 2 double shielding cross-link, copper net weaving density is more than 85%. 3. The special cross-linked low smoke halogen-free flame retardant sheath has large flow capacity, large insulation resistance, long service life, strong overload capacity, environmental protection, safety POE +). 4. Other characteristics, no halogen, low smoke, non-toxic, no corrosion. Support for Ethernet power supply (Power over Ethernet) applications (POE). |
Application |
| SF/UTP,CAT5E,AWG22, indoor 1. High buildings, hotels, shopping malls, stadiums, transportation hub, entertainment places need high flame retardant halogen, low smoke, non-toxic, no corrosive gas crowded area. 2.Especially suitable for rail transit on-board PIS system, the relevant national standards have clearly required the on-board PIS system to give priority to the use of cross-linked sheath cables. |
Specification of Cat5e Ethernet Cable |
|||||||
| Transmission performance | CAT 5E | ||||||
| Frequency(MHz) | 4 | 10 | 20 | 31.25 | 62.5 | 100 | 150 |
| Attenuation IL(DB/100M) | 3.9 | 5.8 | 8.1 | 10.1 | 15.4 | 20 | 21.5 |
| Near end crosstalk attenuation(NEXT)(dB) | 82.1 | 85 | 65 | 60 | 60 | 50 | 48 |
| The um of proximal crosstalk attenuation power PS NEXT(dB) | 80.3 | 82.4 | 62.9 | 58.3 | 57.9 | 49.3 | 46 |
| Equal-level distal crosstalk attenuation(ACR-F)(dB) | 81.6 | 80.9 | 75.6 | 65.6 | 63.7 | 59 | 55.8 |
| Equal-level distal crosstalk attenuation power PS (ACR-F)(dB) | 79.8 | 78.1 | 72.6 | 65.6 | 63.7 | 59 | 55.8 |
| Echo loss PL (dB) | 31.2 | 32.9 | 38.8 | 33.7 | 23.8 | 26.2 | 24.9 |
| Electric property | |
| Direct-current resistance | 145Ω/KM |
| Earth capacity | ≤5.6nF/100m(@1KHZ) |
| 100 MHZ characteristic resistance | 100Ω±15Ω |
| Transverse transformation and loss of TCL | ≥55dB(30-100MHZ) |
| Delay deviation | 45ns/100m |
| NVP | 65% |
| Ethernet Power Supply (POE) | IEEE 802.3at Enhanced Ethernet |
| Mechnical performance | |
| Minimum bending radius (Static) | 28mm |
| Minimum bending radius (dynamic) | 56mm |
| Max installation Tensile | 100N |
| Anti compressing value | 1000N/10cm |
| Compassion resistance | ≥10 times |
| Installastion temperature | -0ºC~+40ºC |
| Working temperature | -40ºC~+80ºC |
