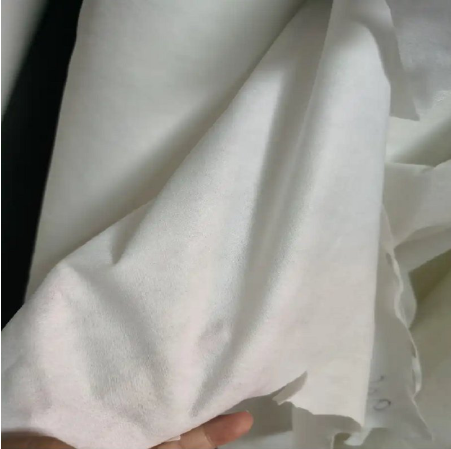

PET Non-Woven Tape Plain Weave Non-Woven Fabric

Categories , ,
Inquiry


PET Non-Woven Tape Plain Weave Non-Woven Fabric ​Application: Be made of 100% polyester fiber, it is made by compressing, dipping, bonding, and drying processes. lt hasthe advantages of high tensile strength in longitudinal, thin, light, good elongation and high temperature resistant, it is mainlyused in cable for insulating, binding and wrapping.


Product Features


Compared with the ordinary non-woven tape in the current market, the differences between our PE’T non-woventape(thickness 0.08mm, weight 40g/m’) and the common non-woven tape(thickness 0.2mm, weight 100-110 g/m).1. l ton our PET non-woven tape can work as 2.5-3 tons for common non-woven tape.2. Using our PE’T non-woven tape can make the production efficiency to improve 5% and reduce more than 10 times ofchanging reels, with features oftight, no up-warp, no wavy.

3. High temperature-resistant and no melting.

4.Complying with the SGS standards.

Disadvantages: Because the fiber is combined with glue to form the tape, which can be adhere to cable cores or insulationsurface at high temperature.


Specification


​








Properties
WD_30
WD-40
 WD-70




Thickness(mm)
0.05±0.02
0.08 ±0.02
0.10±0.02
0.20±0.03




Weight(g/m°)
30±5
40+5
70+5
70+5




Tensile Strength(N/cm)
>25
≥35
>50
>50




Elongation(%)
>12
>12
>12
>12




Moisture Content(%)
<5
<5
<5
<5




Short Term Stability(ºC)
230
230
230
230




Long Term Stability(ºC)
90
90
90
90










​
