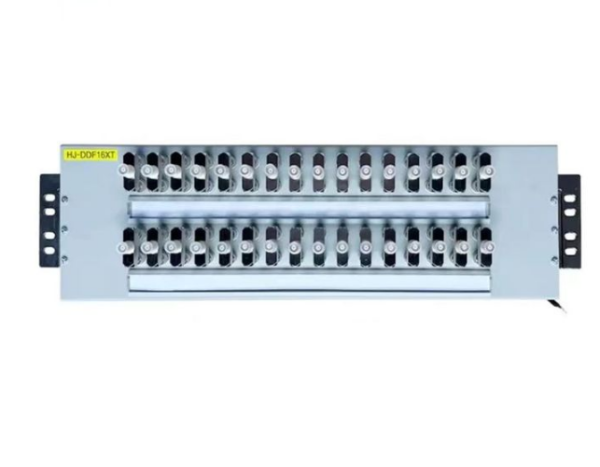

Waterproof Environmental Friendly Indoor Fiber Distribution Panel
Cable distributor is a device for end user cables and connecting them. It is the most important component in the management subsystem, and it is the hub to realize the cross-connection between the vertical trunk line and the horizontal wiring two subsystems. Distribution frame is usually installed on the cabinet or wall, by installing accessories, can meet UTP, STP, coaxial cable, optical fiber, audio and video and other needs.
Waterproof indoor fiber distribution panel is a device for end user cables and connecting them. It is the most important component in the management subsystem. And it is the hub to realize the cross-connection between the vertical trunk line and the horizontal wiring two subsystems. Distribution frame is usually installed on the cabinet or wall. By installing accessories, can meet UTP, STP, coaxial cable, optical fiber, audio and video and other needs.
Features |
High-quality cold-rolled steel plate, durable |
Modular structure, easy to install and maintain |
Rail-type drawing structure, light and firm |
Fiber distribution panel has high-density structure |
RoHS 2.0 compliant |
Reference Standard |
ISO/IEC11801 |
Specification |
Dimensions : |
(Height x Width x Depth) 1Ux482x385(mm); 2Ux482x385(mm) |
Installation dimensions: |
19 inch installation |
Spray color : |
black |
Material: |
Cold rolled steel plate |
Use environment : |
indoor |
Physical Parameters |
Operating temperature : |
-10 °C~ 60 °C |
storage temperature : |
-40 °C~ 68 °C |
Relative humidity: |
10% ~ 90% |
