Full Guide to Optical Ground Wire

Optical Ground Wire (OPGW) integrates optical fiber into an overhead ground wire, combining the functions of a power line ground wire and a telecommunication cable. It ensures reliable transmission of audio, video, and data while maintaining the electrical and mechanical properties of a traditional ground wire. OPGW is widely used in power systems due to its high reliability, durability, and ability to withstand extreme conditions such as strong winds and ice loads.

Key Features of OPGW

1.Dual Function: Acts as both a ground wire and a communication cable, reducing infrastructure costs.

2.High Reliability: Resistance to lightning strikes and short-circuit currents, minimizing communication failures.

3.Durability: Withstands harsh environmental conditions and provides a service life of 25-30 years.

4.Large Fiber Capacity: Accommodates multiple optical fibers, meeting the needs of modern communication networks.

5.Cost-effective Installation: Optical ground wire applicable to power lines of all voltage levels with direct installation.

OPGW Structure

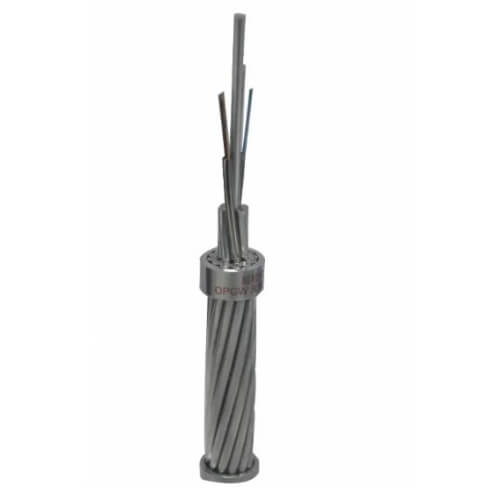

OPGW cables consist of optical fibers encased in a metal tube, which is further protected by layers of aluminum-steel or aluminum alloy wires.

The structure ensures excellent mechanical strength and electrical performance. Key structural components include:

1.Optical fiber: Provides high-speed, low-loss data transmission.

2.Fiber-filled compound: Prevents water ingress and buffers vibration and mechanical forces on the fiber.

3.Aluminum-steel: Provides lightweight, corrosion-resistant reinforcement with high tensile strength.

4.Protective layer: Shields the fiber from environmental and mechanical damage.

Advantages of OPGW

1.Lightning Protection: Acts as a traditional ground wire, providing a short-circuit ground path and protecting power lines from lightning strikes.

2.High Tensile Strength: Designed to endure high mechanical stresses, including wind and ice loads.

3.Stable Communication: Provides high-quality data transmission with minimal signal loss and resistance to electromagnetic interference.

4.Low Maintenance: Robust structure ensures long-term minimal upkeep.

5.Anti-theft Design: Difficult to steal or destroy due to its overhead installation.

Applications of OPGW

OPGW is mainly used for communication and grounding purposes in the power industry.

Suitable for power transmission lines: 500KV, 220KV, and 110kV voltage levels.

SCADA Network: Supervisory Control and Data Acquisition System.

Voice, Video, and Data Transmission: Ensure seamless communication in the power grid.

Renewable Energy Systems: Monitor and control wind and solar facilities Remote Communications: Provide reliable fiber-optic communications in remote areas.

Maintenance and Monitoring

1.Regular Inspections: Line personnel conduct routine inspections and handle special situations as needed.

2.Spare Fiber Testing: Regularly test the performance of the fiber core.

3.Temperature Monitoring: Performed at the substation grounding point to ensure proper operation.

4.Real-time OTDR Monitoring: Optical Time Domain Reflectometer (OTDR) systems provide real-time fiber condition monitoring.

5.Drone Inspections: For efficient and accurate line inspections.

6.Distributed Fiber Sensing: Brillouin scattering technology enables full-length monitoring of OPGW cables.

Market Demand and Growth Drivers

1.Power System Modernization: OPGW supports smart grids by enabling real-time data transmission and remote control.

2.Rising Power Demand: New transmission lines and infrastructure projects are increasingly adopting the dual functionality of OPGW.

3.Renewable Energy Integration: Plays a key role in monitoring and controlling distributed renewable energy systems.

4.Increased Communication Demand: Provides high-speed, high-bandwidth communications, especially in remote or challenging environments.

5.Technological Advances: Improved fiber and cable designs improve the efficiency and reliability of OPGW.

6.Environmental Regulations: Meet regulatory requirements by reducing environmental impact and infrastructure needs.

Why choose OPGW?

OPGW provides a reliable, efficient, and cost-effective solution for propagation and communication. Its ability to combine grounding and communication functions in a single cable makes it ideal for modern power grids. With long service life, high reliability, and outstanding performance, OPGW is the preferred choice of power system operators around the world.
