The Precision Conduit for Ultraviolet Light

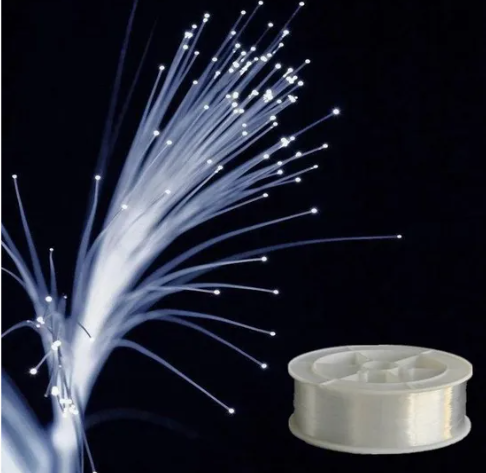

Many advanced medical systems and industrial processes need precise UV light delivery. Standard optical fibers work poorly for UV light due to high absorption. Low Loss UV Fiber solves this problem. This specialty optical fiber transmits UV band light (200-400nm) with minimal loss. It acts as a high-fidelity light pipe for applications like laser surgery and UV curing. This technology expands photonics into shorter, more energetic wavelengths.

The Challenge of Transmitting Ultraviolet Light

Transmitting UV light is difficult. At short wavelengths, light interacts strongly with materials. In standard silica fibers, impurities like hydroxyl ions absorb light powerfully. Microscopic imperfections also cause severe scattering. This leads to very high signal attenuation. So, transmission over even short distances becomes impractical. Additionally, high-energy UV photons can cause photodarkening. This process permanently degrades the fiber. Historically, these issues limited UV systems to bulky free-space optics.

The Core Innovation: Material Purity and Waveguide Engineering

Low Loss UV Fiber succeeds through extreme material purity and precision manufacturing. Its core uses high-purity synthetic silica. Manufacturers produce this material with methods like plasma chemical vapor deposition. This process achieves ultra-low levels of impurities. Then, they draw the pristine material into fiber with an optimized structure. This step minimizes scattering centers. The result is a medium where UV photons travel with far less obstruction. Consequently, it enables flexible and reliable UV light delivery.

Technical Specifications and Performance Advantages

Low Loss UV Fiber offers value through specific performance parameters. These directly impact its use in demanding fields.

Defining Performance: Attenuation and Damage Threshold

Two key metrics define performance. First, the fiber provides ultra-low UV attenuation. For key laser wavelengths like 266nm or 355nm, attenuation can be below 10 dB/km. In contrast, standard fiber shows much higher loss. This low loss enables effective power delivery over practical lengths. Second, the fiber has a high UV damage threshold. It withstands high power densities from continuous or pulsed lasers. This ensures long-term reliability and stable output.

Customizable Physical and Optical Parameters

These fibers come in various configurations for different needs. Core diameter ranges from small (50µm) for high power density to large (400µm) for high total power. Numerical Aperture controls the acceptance angle and output beam divergence. A higher NA makes coupling light from sources easier. Also, fibers use specialized coatings. Standard polymer coatings degrade under UV. So, UV fibers employ hermetic carbon or advanced UV-resistant coatings for protection.

Mechanical and Environmental Durability

Despite their optical focus, these fibers maintain good mechanical strength. They handle standard integration and connector use. Designers make them compatible with standard fiber optic connectors. They use UV-transmitting epoxy for termination. Fibers can also fit into customized medical or industrial probes. Their performance stays stable across relevant operating temperatures.

Applications in Medical and Industrial Systems

Low Loss UV Fiber transforms system design in medicine and industry. It enables new capabilities in both fields.

Enabling Advanced Medical Therapies and Diagnostics

In healthcare, this fiber brings precision and minimally invasive options. For laser surgery and ablation, it delivers excimer laser energy (e.g., 193nm) or frequency-tripled Nd:YAG light. This enables precise work in ophthalmology and dermatology. In photodynamic therapy, it provides the UV/blue light to activate cancer-fighting drugs. For biosensing and flow cytometry, it transmits UV light to excite fluorescent markers in analytical devices.

Powering Precision Industrial Processes

In manufacturing, the fiber enables automation and remote processing. For UV curing and printing, it delivers high-intensity light to instantly cure inks and resins. This allows for compact, flexible production tools. In laser micromachining, it transmits pulsed UV energy for fine material processing. This creates minimal heat-affected zones. For spectroscopic analysis, it serves as a flexible light guide in harsh industrial environments.

Future Trends and Conclusion

UV photonics evolution drives demand for better fibers. The field pushes toward shorter wavelengths and higher powers.

Research now focuses on the Deep Ultraviolet spectrum below 200nm. This work explores alternative core materials like fluoride glasses. Another promising area is hollow-core photonic crystal fibers. Concurrently, the need for higher power handling drives innovations in fiber design. Furthermore, integrating UV fiber into compact medical probes is a key trend. This makes targeted therapies more accessible.

In conclusion, Low Loss UV Fiber is a critical technological bridge. It moves UV photonics from labs into practical, flexible systems. By solving high attenuation through material purity, it becomes indispensable. It enables life-saving medical procedures and drives efficient manufacturing. This specialty fiber is a cornerstone of modern photonic systems. Its ongoing advancement will unlock further innovations where light, matter, and technology meet.

FAQs

1. Why can’t I use a standard multimode fiber for UV light transmission?

Standard multimode fibers have high hydroxyl impurity levels. These impurities strongly absorb UV light, causing very high signal loss. Often, the fiber becomes opaque over just centimeters. Low Loss UV Fiber uses synthetic silica with minimal impurities. This makes effective UV transmission possible.

2. How do I connect and terminate a Low Loss UV Fiber? What about connectors?

Termination requires careful procedure. Avoid standard epoxy because it can degrade under UV light. You must use UV-transmitting, low-fluorescence epoxy. Connectors like SMA-905 are typically acceptable. However, the internal ferrule material and bonding process need optimization for UV. Often, fibers integrate directly into custom metal or ceramic probes.

3. What is the typical lifetime of a Low Loss UV Fiber under high-power laser exposure?

Lifetime depends on wavelength, power density, and pulse regime. High-quality fibers resist photodarkening. Under recommended conditions, they maintain stable transmission for thousands of hours. However, extremely high peak powers can gradually degrade performance. Always follow the manufacturer’s maximum power ratings for reliability.

4. Are there fibers for wavelengths below 200nm (Deep UV)?

Transmission below 200nm is very challenging. Even pure silica absorbs deeply here. For Deep UV, consider alternative materials. Fluoride glass fibers can transmit down to ~250nm, but they are fragile. Hollow-core fibers guide light in an air core, avoiding material absorption. They are a leading research area but are currently more complex and costly.
