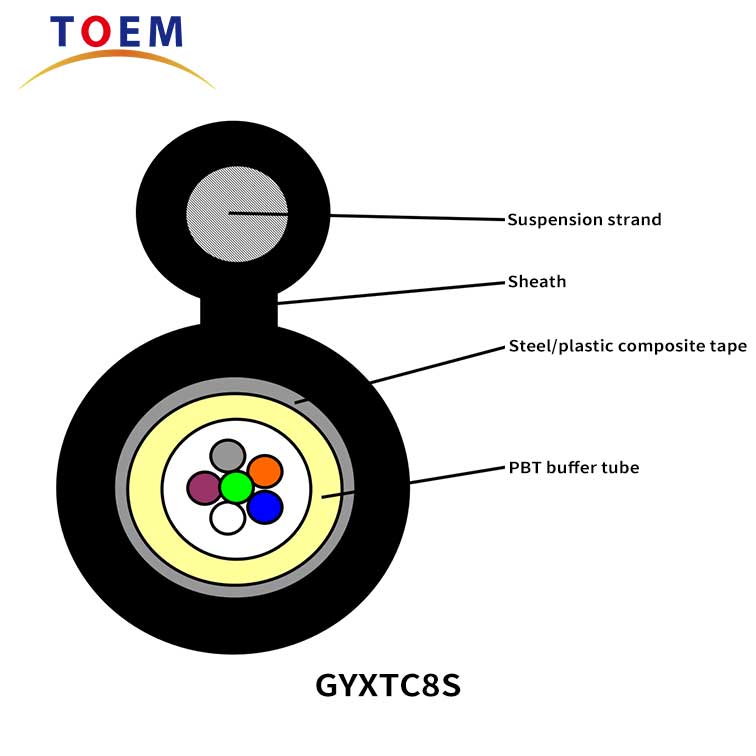

The structure of GYXTC8S armored figure 8 drop cable is to insert 250 µm optical fiber into a loose tube made of high modulus material, and fill the loose tube with waterproof compound. Add a layer of water blocking tape on the outside of the loose tube, then wrap it longitudinally with a layer of coated steel strip (PSP), and integrate it with the steel wire into an 8-shaped polyethylene sheath to form the cable.

Standard

YD/T 1155 , IEC 60794-1.

Feature

1.Steel wire has high tensile strength, making it easy for self-supporting overhead laying and reducing installation costs;
2.Figure 8 drop cables have excellent mechanical properties and temperature characteristics;
3.The loose tube material itself has good hydrolysis resistance and high strength;
4.The tube is filled with special ointment to provide critical protection for the optical fiber;
5.Take the standard measures to ensure the waterproof performance of the optical cable;
6.Filling special waterproof compounds inside the loose tube;
7.Plastic coated steel strip (PSP) enhances the moisture resistance of optical cables;

Characters of Figure 8 Cable

Storage,Working Temperature: -40ºC~+70ºC;
Packaging:Standard disc tools;
