GYDTA Layer Stranding Optical Ribbon Fiber Cable 48-432 with Aluminum Tape
The Stranded optical ribbon fiber cable adopts SZ stranding, which can better control the excess length, giving the optical cable good mechanical and environmental performance.
The casing has good flexibility.
The optical fiber ribbon is easy to pull out in the middle, easy to connect, easy to clean, and low installation cost.
Stranding Fiber optic Ribbon Cable has good water blocking effect
Aluminum (steel) corrugated longitudinal bonded sheath, which can effectively prevent moisture and has good mechanical properties.

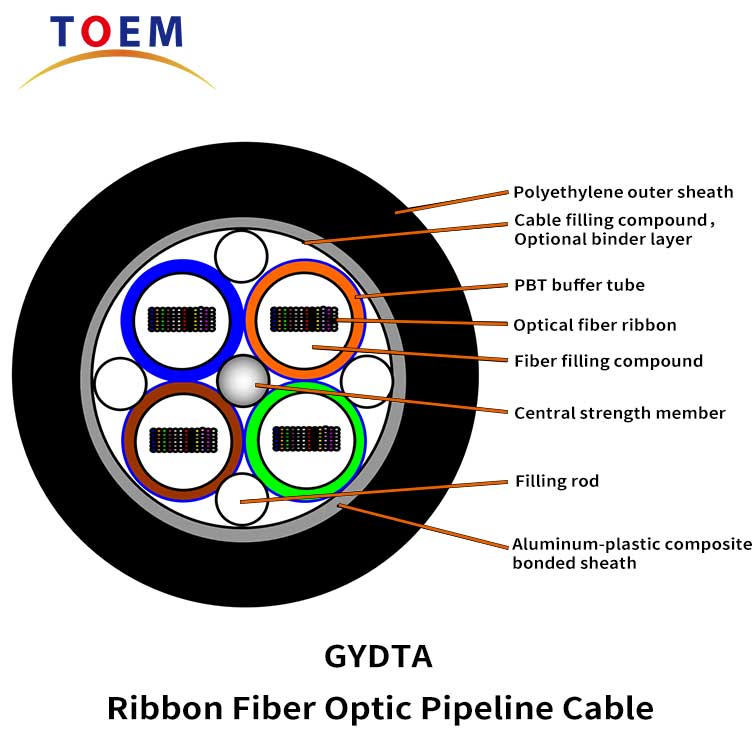

GYDTA Ribbon Fiber Cable are constructed by placing single – or multi-mode fibers in loose tubes made of high-modulus plastic filled with water-blocking compounds. The center of the stranding fiber optic cable core is a metal reinforcement core. For some fiber optic cables with a number of cores, a layer of polyethylene should be squeezed outside the metal reinforcement core, and the loose sleeve (and filling rope) should be twisted around the center reinforcement core to form a compact and circular cable core. The gap in the cable core is filled with water-blocking filler. The stranded ribbon fiber cable is formed by a polyethylene sheath after two sided aluminum coated tape is longitudinally wrapped.
Feature
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- PE sheath protects cable from ultraviolet radiation
- Good crush ability,applies for duct and directly buried application
- Single steel wire as central strength member
- Special tube filling compound ensure a critical protection of fiber
- Fully filled in the cable
- Double APL layers prevent the moisture
- Fiber optic ribbon cable has good water-blocking tape prevent the sinking vertically
- Good mechanical and temperature performance
Application
Aerial & conduit/duct application
Specification
| item | value |
| Model Number | GYDTA |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose Tube Material | PBT |
| Armoured | Al tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Al Tape armor |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Installation | aerial, in duct |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
Structure and Technical Specifications:
| Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
