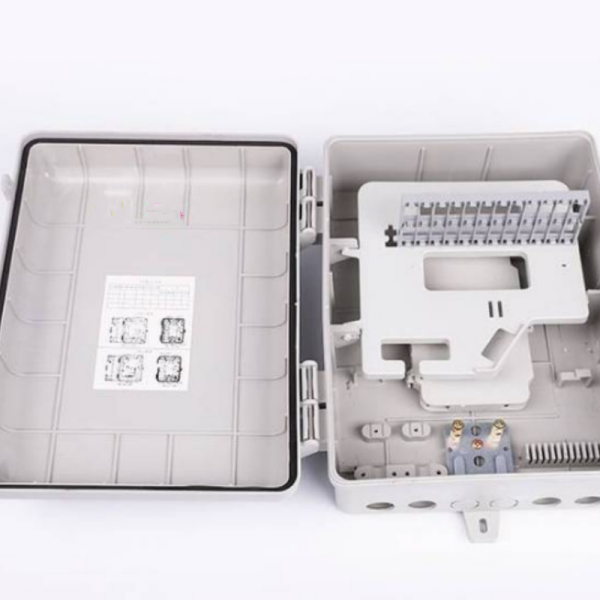

High strength Wall Mount Fiber Termination Box Fiber Separation Box/T-E032

Adapter type optical fiber box is suitable for the cable connection of optical cable and communication equipment. Through the adapter in the fiber box, the optical signal is drawn by the optical jumper to realize the optical line function. It is suitable for the protective connection of optical cable and the line tail fiber, and also suitable for the optical fiber terminal point in the optical fiber access network.

Categories , Tags ,
Inquiry

High Strength Wall Mount Fiber Termination Box Features:
Modular optical cable fiber box terminal is more convenient, more flexible to use;
Support the management of various optical fiber connections, such as LC / SC / ST / FC, etc;
From 12 to 72 core configurations are available;
Using SMC high strength material, corrosion resistance;
Direct melting supports optical fiber crossing function;
Meet the cable TV, optical communication network, three networks in one. It also suitable for optical fiber to the home optical cable cable and fiber function.



High Strength Wall Mount Fiber Termination Box Specification
Specification Upper Optical Cable capacity Plastic cable capacity Sizes Capacity of the insert-type optical distributor(1:4,1:8,1:16,1:32
12 Core Adapter type optical cable fiber box(SMC box) 12 cores 16 cores 420*350*110 4  2  1 /
24 Core Adapter type optical cable fiber box(SMC box) 12 cores 32 cores 420*350*110 8  4  2  1
48 Core Adapter type optical cable fiber box(SMC box) 12 cores 64 cores 488*388*140 16  8  4  2
12 Core Adapter type optical cable fiber box(Metal box) 12 cores 16 cores 330*360*100 4  2  1 /
24 Core Adapter type optical cable fiber box(Metal box) 12 cores 32 cores 330*460*100 8  4  2  1
48 Core Adapter type optical cable fiber box(Metal box) 12 cores 64 cores 460*420*170 16  8  4  2



Fiber Terminal Box Application:
Cable TV, Optical communication network. Application standard YD/T988-1998GB 50846-2012YD/T1636-2007
