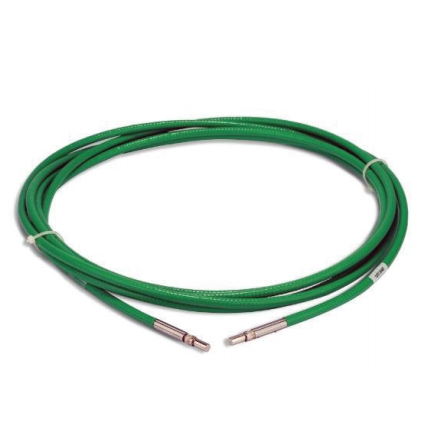

The energy transmission fiber patch cord uses large core diameter energy optical fiber with fluoride doped quartz cladding and is protected by high quality stainless steel flexible hose. Match core & cladding diameters according to customer requirements, design fiber-connector-sheath connection process , end cap welding and end face coating process are optional.
Through precise grinding and polishing and cleaning of end face, high efficiency coupling and high power stable transmission are realized.
Technology Parameters
| ltem | Parameters | Comment |
| Fiber Size (Jum) | 105/125-910/1000 | Optical fiber specifications can be specified |
| Numerical Aperture (NA) | 0.22±0.02 (typical value) | Customizable |
| Fiber Characteristic | Step, high/lowOH, acrylic coating/ETFE sheath | Customizable |
| Connector Type | SMA905/FC/D80, etc | Customizable |
| End form | Flat head and HP suspended head | Optional end ca p welding and end coating |
| Length | 0.1m-25m | Customizable |
| Operating Wavelength | 200~1200mm | Customizable |
| Transfer Efficiency | >93% | Insert ion loss<0.3dB, related to the length |
Product Feature
1. Fiber core and package match and laser damage threshold are high;
2. Energy transmission fiber patch cord has clamping stability, high concentricity;
3. High-quality stainless steel hose protection;
4. The transmission efficiency is greater than 93% and the performance is stable;
5. Organic glue/ inorganic glue process is optional;
6. SMA905/FC/D80 connector is optional;
Product Application
1. Energy transmission fiber patch cord is suitable for Laser Marking;
2. Silicon, Ceramic Cutting;
3. Energy transmission optical fiber patch cord is suitable for Spectral Measurement;
4. Semiconductor Pump Output;
